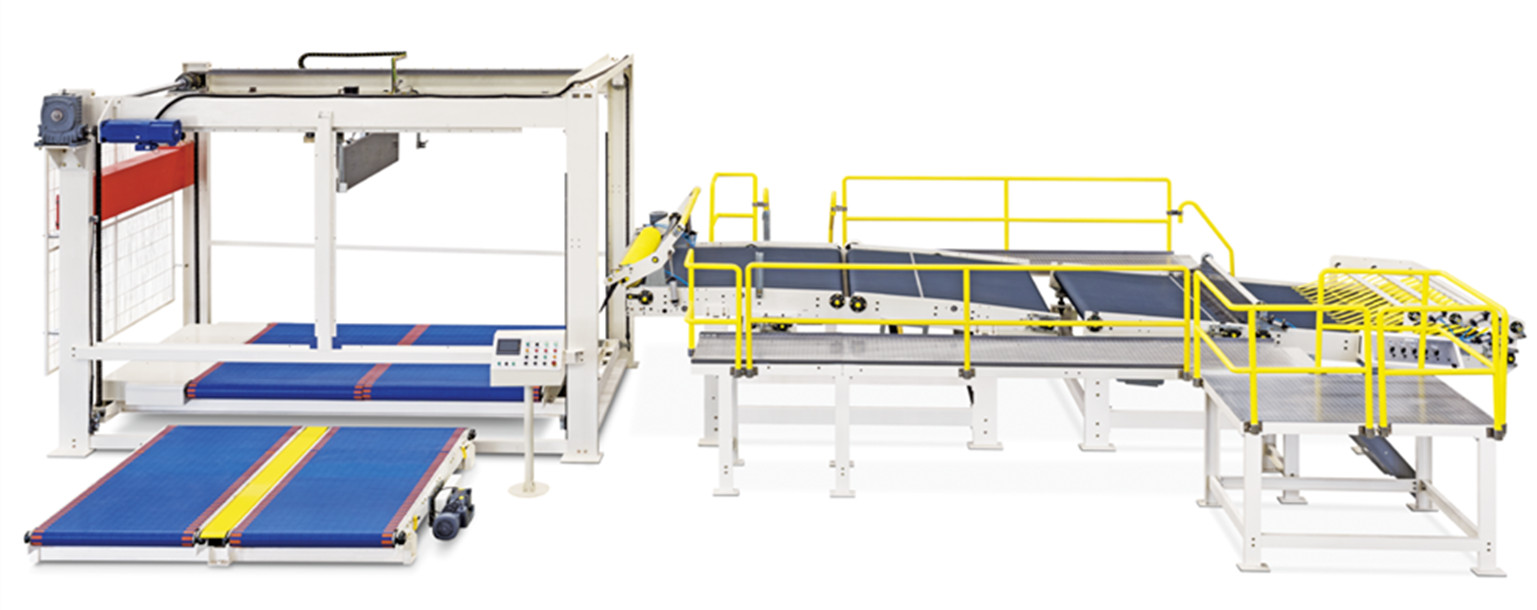

Gantry Type NC Servo Up and Down Stacker (Energy-saving Type)

Gantry Type NC Servo Up and Down Stacker (Energy-saving Type)

Summary

The Gantry Type Servo Up and Down Stacker could be able to finish cycling process of automatic board stacking, batching, stacking and transverse discharge. Its end conveying platform and suspension basket transverse discharge form counterweight

to each other which greatly reduces cycling time of batches in combination with unique designing of lifting and improves production efficiency and lowers energy consumption .and also could be used for corrugated board production lines.

Electric & Pneumatic part

PHASE AC Servo Motor

Shanghai Futian VF Motor

Pneumatic components from SMC, Air Tac

Actuation Part

High quality hot-rolled channel steel frame

Conveying rollers made of high-quality steel tubes and precisely-drawn

steel tubes which are subject to dynamic balance checking

Switzerland Rapplon conveying belt

Module conveying belt imported from Denmark

Transmission Part

Imported synchronous belt

HRB precision bearing

Imported coupling

Control Part

Lifting control of suspension basket platform: servo motor

Conveying control of conveying segment: Schneider frequency converter

Control of rear baffle: servo motor

Operation monitoring: industrial computer or Schneider touch screen

Monitoring control: Schneider PLC, Sick sensor

Low-voltage apparatus: Schneider


Characteristic

The control system of master and slave computer is formed by high quality human-computer interface

and high performance PLC, and can be connected with production management system;

Multi-group carbon fiber brushes are controlled independently that can ensure the boards to be neatly

stacked at different line speeds and for different slitting lengths;

Multiple segments of conveying belts are driven by separate VF motor, so that the speed of the

conveying belt can automatically track the production line speed to complete board stacking, batching

and order changing for different lengths of boards at different line speeds and complete cycle operation

automatically;

The gantry conveying end is connected with suspension basket transverse discharge device through

chains and both of them form counterweight to each other and realize synchronous lifting to reduce

energy consumption and shorten switching time of batches and then improve production line speed; the

servo motor controls synchronous lifting to ensure stable and neat stacking and stable operation.

The position of board baffle can be adjusted automatically, so as to suit different lengths of boards; the

baffle could be lifted vertically to neatly stack the boards.

Realize multi-order stacking, which is applicable to small order stacking;

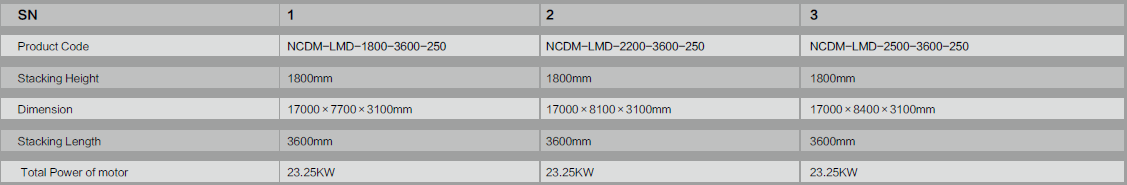

Parameter
