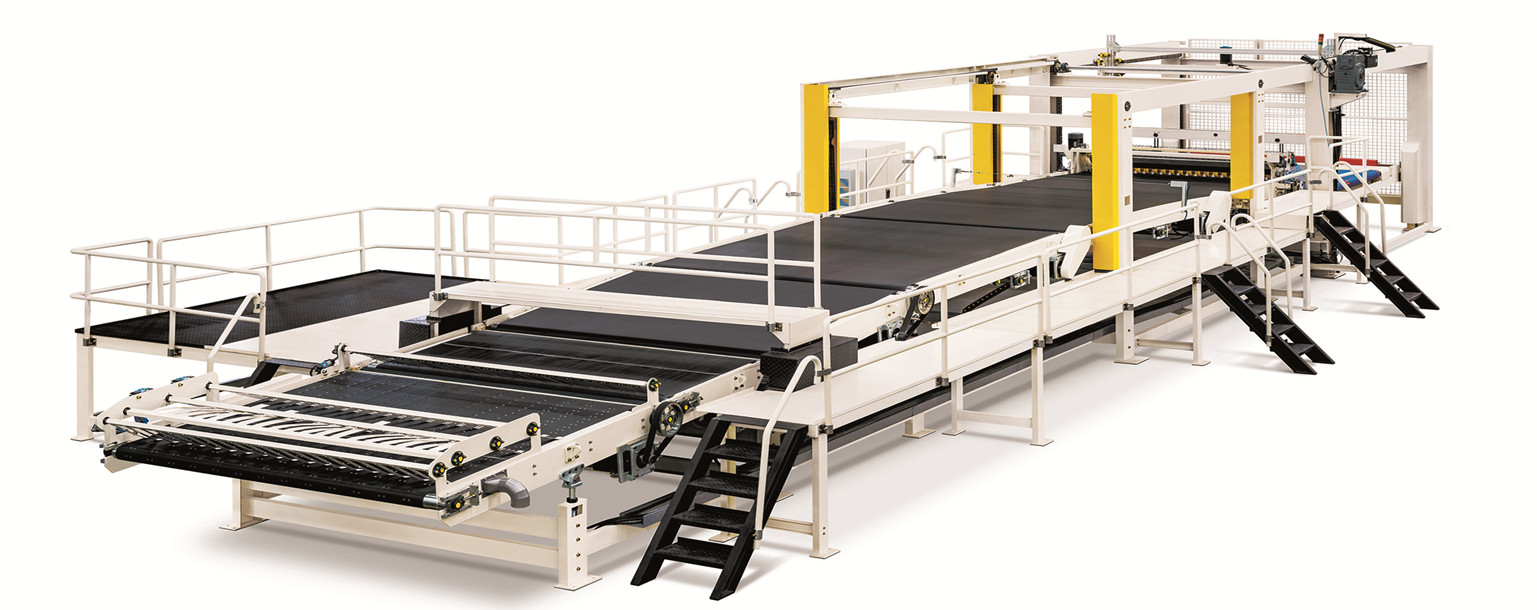

Gantry Type NC Servo Up & Down Dislocation Stacker

Gantry Type NC Servo Up & Down Dislocation Stacker

Summary

NC Servo Up & Down Dislocation Stacker could be able to finish cycling process of automatic board stacking, batching,

alternating stacking and transverse discharge. Its end conveying platform and suspension basket transverse discharge form

counterweight to each other which greatly reduces cycling time of batches in combination with unique designing of lifting and

improves production efficiency and lowers energy consumption and also could be used for corrugated board production lines.

Electric & Pneumatic part

PHASE AC Servo Motor

Pneumatic components from SMC, Air Tac

Actuation Part

High quality hot-rolled channel steel and I-shaped steel frames

Conveying rollers made of high-quality steel that are all subject to dynamic balance

checking;

Switzerland Rapplon conveying belt

Module conveying belt imported from Denmark

Transmission Part

Imported synchronous belt

HRB precision bearing

Imported coupling

Control Part

Fully automatic computer control to ensure fast order change with cycling time being

20s;

Multi-segment conveying is controlled by servo motor to realize automatic adjustment

and synchronize with production line;

Lifting platform is controlled by servo motor to ensure stable lifting and stable operation;

Dislocation actuator is controlled by cylinder to ensure fast and reliable operation;

Rear baffle is controlled by computer to ensure accurate movement without need for

human intervention;

Fully computer controlled to have complete functions and connected with production

management system;


Characteristic

The control system of master and slave computer is formed by high quality human-computer

interface and high performance PLC, and can be connected with production management system;

The first segment of board stacking platform can convey boards with vacuum sucking, so that

boards can be neatly and accurately stacked in batches;

A group of carbon fiber brushes independently braked can ensure the boards are neatly

stacked at different line speeds and for different slitting lengths;

Multiple segments of conveying belts are driven by separate servo motor, so that the speed of

the conveying belt can automatically track the production line speed, and counting function can be

accurately achieved;

Different slitting lengths of boards can be stacked, batched and order-changed to complete

cycle operation automatically;

The gantry conveying end is connected with suspension basket transverse discharge device

through chains and both of them form counterweight to each other and realize synchronous lifting to

reduce energy consumption and shorten switching time of batches and then improve production

line speed; the servo motor controls synchronous lifting to ensure stable and neat stacking and

stable operation.

The position of board baffle can be adjusted automatically, so as to suit different lengths of

boards and neatly stack the boards in sequence;

The rear baffle could be automatically lifted, translated to realize multi-order stacking, which is

applicable to small order stacking;

Realize high speed dislocation stacking of 10, 15, 20 boards, reduce human counting and

separate strapping, greatly improving production efficiency.

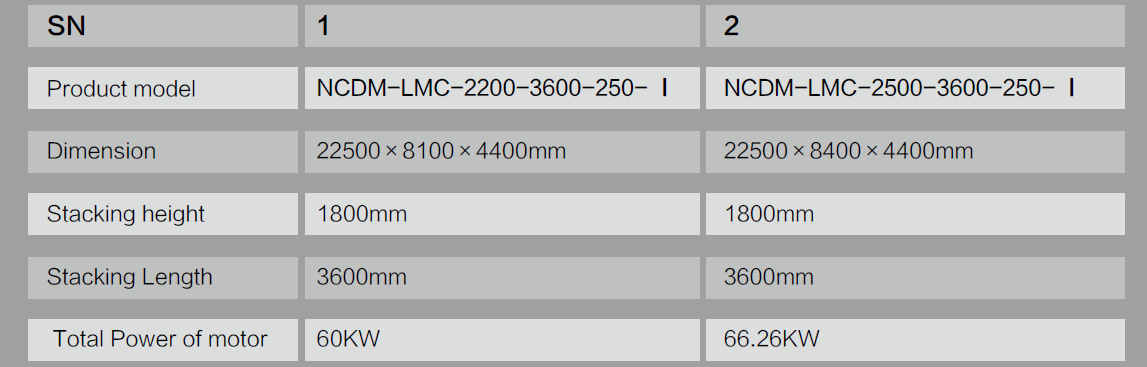

Parameter
